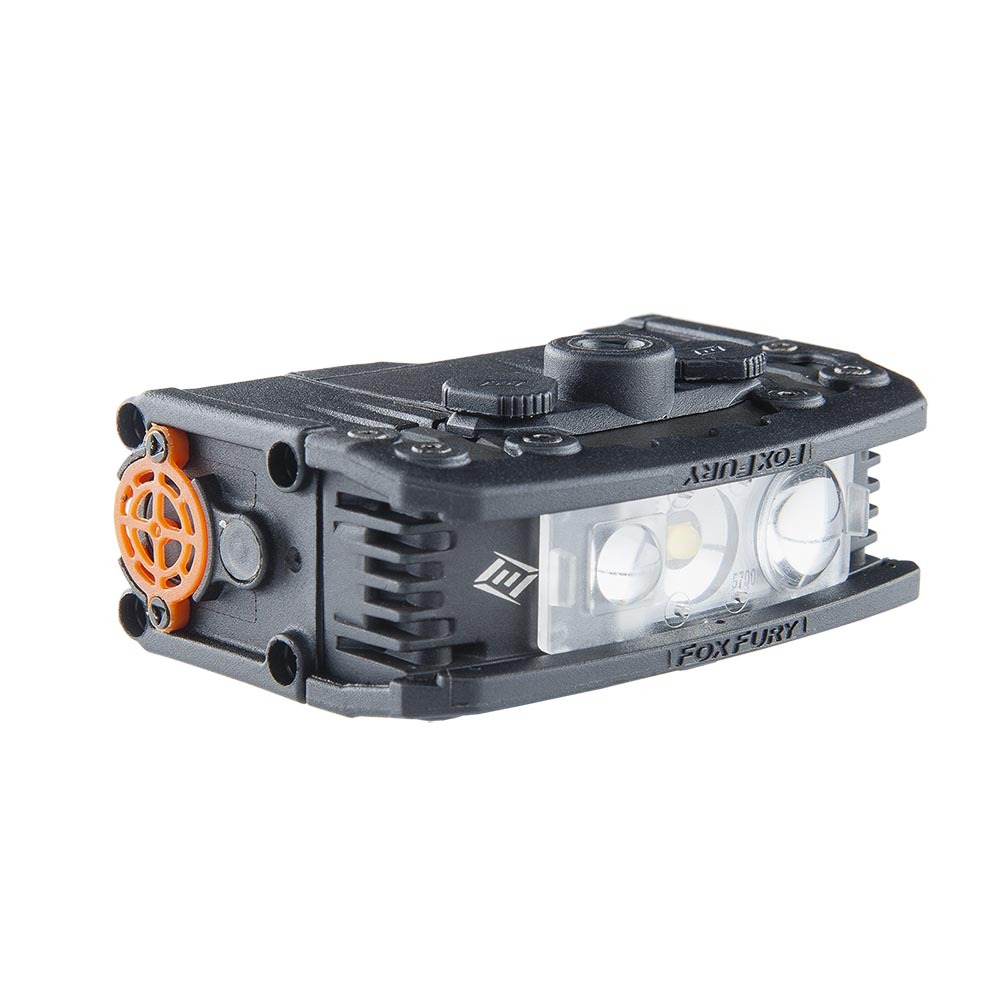

Rugo Light System for Trimble Laser Scanners

Please Call to Order (760) 945-4231

Enhance the quality of laser scanner photographs in low light with this customized lighting solution designed in conjunction with Trimble. The Rugo lighting systems are selected for optimal color accuracy and dramatically enhance the details and quality of scanner photos in light deprived or heavily shadowed areas. This light system benefits a wide array of professional forensic and geospatial applications including investigations, inspections, surveying and more.

Description

Enhance the quality of laser scanner photographs in low light with this customized lighting solution designed in conjunction with Trimble. The Rugo lighting systems are selected for optimal color accuracy and dramatically enhance the details and quality of scanner photos in light deprived or heavily shadowed areas. This light system benefits a wide array of professional forensic and geospatial applications including investigations, inspections, surveying and more.

​The Rugo Light System for Trimble Laser Scanners integrates with all Trimble 3D Laser Scanners including the X7, X12, SX12, and R12.

These systems include:

  • 3 Unit System - 700-TRMB-3
    (3) Rugo Lights
    (3) Tripod Clamps
    (3) Swivel Ball Mounts



  • 6 Unit System - 700-TRMB-6
    (6) Rugo Lights
    (3) Tripod Clamps
    (6) Swivel Ball Mounts
    (3) Aluminum Dual-Mount Plates

Specifications

Battery Life 1 - 6.75 hours
Power Source Rechargeable Lithium-Ion Battery System with Yellow Switch Cover (Quick Swap® Power Pack)
Lumens  Dim 70 lumens; Low 200 lumens; Medium 380 lumens; High 620 lumens
Modes 4 (Dim, Low, Medium, High)
Dimensions (light) 2.9 x 2.0 x 1.0 in (74 x 51 x 25 mm)
Total Weight (light) 5.6 oz (158 g)
Weight of Power Pack 2.6 oz (73 g) Power Pack only
Dimensions (Tripod Clamp) 3.93 x 2.76 x 1.74 in (100 x 70 x 44.3 mm)
Weight (Tripod Clamp) 9.47 oz (98.5 g) / ea
Dimensions (Swivel Ball Mount) 1.18 x 1.8 x 2.56 in (30 x 45.7 x 65 mm)
Weight (Swivel Ball Mount) 3.27 oz (92.7 g) / ea
Certifications CE-EMC
Ingress Protection IPX7
Fire Resistant Meets Requirements of NFPA 1971-8.6
Waterproof 22.9 ft (7 m)
Impact Resistant 9.8 ft (3 m) drop
Color Temperature 5600K, 92 CRI
LED Color White
Strobe Rate 90 Cycles Per Minute
Materials Black Nylon 66 Power Pack, Yellow switch cover, Black aluminum housing, Clear Acrylic Tri-Lens®
Materials (Mounts) PSV Plastic, Aluminum
Operational Beam Distance Spot: 50 ft (15 m)
Area: 30 ft (10 m)
Flood: 10 ft (3 m)
Fits Trimble 3D Laser Scanners including the X7, X12, SX12, R12
Adaptor Input: Micro USB
Recharge Time 2.5 hours
Beam Angle 25 degree Spotlight, 55 degree Area, 120 degree Flood
Features Rechargeable Quick Swap® Power Pack
Tri-Lens® Technology
Optional Strobe feature on some models
Warranty Limited Lifetime Warranty
What's Included (700-TRMB-3) (3) RUGO™ RC Light, (3) 1/4" - 20 and Cold-Shoe Mount, (3) Standard Mount with 2 knobs, (3) USB Cable, (3) RUGO™ Bag,  (3) Tripod Clamp,  (3) Swivel Ball Mount,  (1) Allen key, 2 mm
What's Included (700-TRMB-6) (6) RUGO™ RC Light, (6) 1/4" - 20 and Cold-Shoe Mount, (6) Standard Mount with 2 knobs, (6) USB Cable, (6) RUGO™ Bag, (3) Tripod Clamp (6) Swivel Ball Mount (4) Allen key, 2 mm (3) Aluminum Dual-Mount Plate
