Structure Fire Side Lighting Kit

$239.99

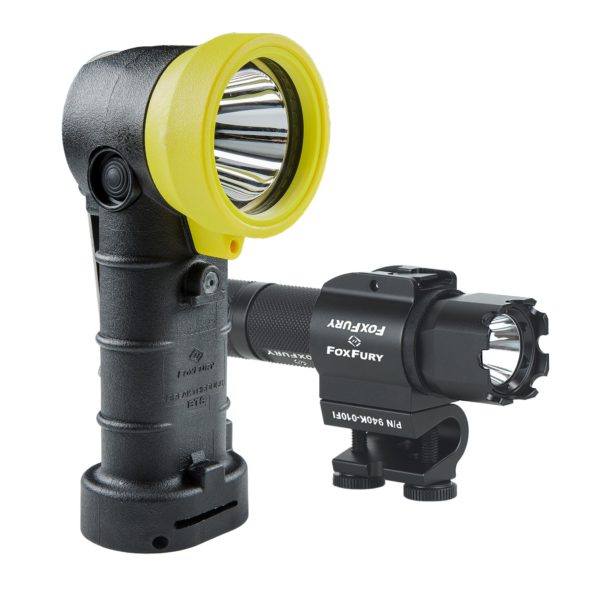

Our best structure fire lights joined together!

The FoxFury SideSlide C-Clamp can be side mounted above or below the brim on most traditional and modern style firefighter helmets, including US style firefighter helmets utilizing goggles, visors and Bourkes eye protection. The custom adaptor allows the flashlight to be removed from the clamp and used as a handheld flashlight. The SideSlide C-Clamp delivers a powerful 275 lumens focused beam and is best for use in structural firefighting along with rescue and industrial applications. The SideSlide works in all-weather conditions and can be submerged underwater. It is impact resistant and meets NFPA fire resistant requirements.

The ultra-durable, low profile Breakthrough® BTS provides a 500 lumen beam for cutting through smoke and illuminating the immediate surrounding area. The low profile design lets users move more freely. This compact and versatile flashlight runs on (4) AA batteries and has a stainless steel clip in the back for hands-free use. It is impact resistant, submersible, and meets NFPA fire resistant requirements.

Available on backorder

Description

Our best structure fire lights joined together!

The FoxFury SideSlide C-Clamp can be side mounted above or below the brim on most traditional and modern style firefighter helmets, including US style firefighter helmets utilizing goggles, visors, and Bourkes eye protection. The custom adaptor allows the flashlight to be removed from the clamp and used as a handheld flashlight. The SideSlide C-Clamp delivers a powerful 275 lumens focused beam and is best for use in structural firefighting along with rescue and industrial applications. The SideSlide works in all-weather conditions and can be submerged underwater. It is impact resistant and meets NFPA fire resistant requirements.

  • 2 Lights in 1 - The SideSlide is both a flashlight and side helmet-mounted light.
  • Helmet Fit - The C-clamp fits most US style fire helmets without an external face shield. It also fits safety helmets with a full brim.
  • Rechargeable Battery Option - Runs on two CR123 batteries or one rechargeable 18650 battery.
  • Highly Visible Rear Safety LED - The on/off switch flashes green when the light is activated and can be seen from over 1 mile away.
  • Rugged -  Made of high quality aluminum that can withstand impacts and is suitable for use underwater.
  • Anti-Roll Head - This flashlight's square anti-roll head prevents the light from rolling away.
  • C-Clamp with Secure SideSlide Lock - The unique C-Clamp adaptor allows the light to be converted from a flashlight to a side mounted helmet light in seconds.
  • Strike Bezel - In an emergency situation, this flashlight's strike bezel is strong enough to shatter your car windshield.
The ultra-durable, low profile Breakthrough® BTS provides a 500 lumen beam for cutting through smoke and illuminating the immediate surrounding area. The low profile design lets users move more freely. This compact and versatile flashlight runs on (4) AA batteries and has a stainless steel clip in the back for hands-free use. It is impact resistant, submersible, and meets NFPA fire resistant requirements.
  • SMO-KUT™ Technology
  • Low Profile Design
  • Hands-free Low Profile
  • Impact Resistant/Submersible
 Xtremium® - Our products are extremely premium. They push the edges of Technology and Design and stand for Quality, Performance, & Reliability.

Specifications

Specifications

SideSlide

Lumens 70 - 275 lumens
Battery Life 3.5 - 8 Hours
Power Source (1) 18650 or (2) CR123 Batteries - not included
Modes 3 (High, Low, Flashing)
Weight (with batteries) 6.3 oz (179 g) *with batteries
C-Clamp Weight 3.7 oz (105 g)
Total Weight 9 oz (225 g)
Length 5.5 in (140 mm)
Diameter Body or Handle 1.1 in (28 mm)
Head Diameter 1.3 in (33 mm)
C-Clamp Dimensions 1.5 x 2.8 x 1.6 in (38 x 71 x 41 mm)
Certifications IPX-7, CE, CE-EMC
Fire Resistant Meets Requirements of NFPA 1971-8.6 (2013)
Waterproof 3.3 ft (1 m)
Impact Resistant 6.6 ft (2 m)
Color Temperature 5700 K
LED Color White
Operating Temperature -4°F (-20°C) to 140°F (60°C)
Materials 6061-T6 aluminum; hard anodized housing; black exterior
Beam Angle 8 degree
Max Beam Distance 1,200 ft (366 m)
Features 2 lights in one: flashlight and helmet light, Secure SideSlide lock,
Rear safety LED (green), Easily accessible tap switch (even with thick gloves)
Warranty Limited Lifetime Warranty
What's Included SideSlide Flashlight, SideSlide C-Clamp Adaptor, O-Ring Replacement, Clear On/Off Button, 3M Reflective Tape Strip
Optional Accessories Rechargeable 18650 Battery, P/N 70-18650R
Battery Charger and Adaptor - AA, 18650 P/N 600-155
SideSlide C-Clamp Adaptor, P/N 85-010
Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Click here to read more information about Prop 65.

BTS

Lumens 80 - 500 Lumens
Battery Life 3 - 12 hours
Power Source (4) AA batteries - not included (Battery option)
BT Rechargeable Battery Pack (Rechargeable option)
Modes 3 (High, Low)
Weight (without battery) 1.1 lbs (499 g)
Weight (with battery) 1.3 lbs (590 g)
Weight Docking Station 9.6 lbs (272 g)
Dimensions 2.8 x 3.1 x 7.5 in tall (71 x 79 x 190 mm)
Dimensions of Docking Station 5.0 x 2.7 x 6.5 in tall (127 x 69 x 165 mm)
Certifications CE-EMC
Ingress Protection IPX7
Fire Resistant Meets Requirements of NFPA 1971-8.6 (2013)
Waterproof 9.8 ft (3 m)
Impact Resistant 22.9 ft (7m)
LED Color White
Color Temperature 5700K
Operating Temperature -4°F (-20°C) to 300°F (149°C)
Materials Nylon 66 housing with polycarbonate lens, Stainless steel clip
Beam Distance 2,123 ft (647 m)
Beam Angle 4 degree
Features Long Distance Search Tool
Multi-Wear options
Rechargeable options allow multiple docking stations to be connected together (max 3 stations center power)
Warranty Limited Lifetime Warranty
What's Included (1) Breakthrough® BTS Light, D-Ring, Key Ring, Hex Key (battery option)
or:
(1) Breakthrough® BTS Rechargeable Light, D-Ring, Key Ring, Hex Key, Rechargeable Battery Pack, Docking Station, AC/DC Adaptor (Rechargeable option)
Optional Accessories BT Rechargeable Kit P/N 600-380BT
Breakthrough® Wedge Black, set of 3 P/N 700-WDG-BL
Breakthrough® Wedge Yellow, set of 3 P/N 700-WDG-YE
Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Click here to read more information about Prop 65.

Manuals

SideSlide Manual

SideSlide Spec Sheet

Breakthrough Manual

Breakthrough Series Spec Sheet

About

ABOUT FOXFURY LIGHTING SOLUTIONS: FoxFury is a family-owned and operated company based in Oceanside, CA. Our goal is to provide the best quality professional flashlights, headlamps and helmet lights, forensic lasers, tactical lights, portable scene lights, right angle lights and drone and camera lights. FoxFury lights are used by first responders including firefighters, paramedics, police (law enforcement) and military, industrial professionals, photographers and videographers, around the world. All FoxFury lighting tools are cordless, battery powered and utilize the brightest, latest LED technology. Rechargeable and intrinsic options are available. All lights are waterproof, all-weather and impact resistant. We aim to manufacture the most dependable, durable professional lights on the market. FoxFury lights come with a Lifetime Limited Warranty. All lights are designed and engineered in California.
