Description

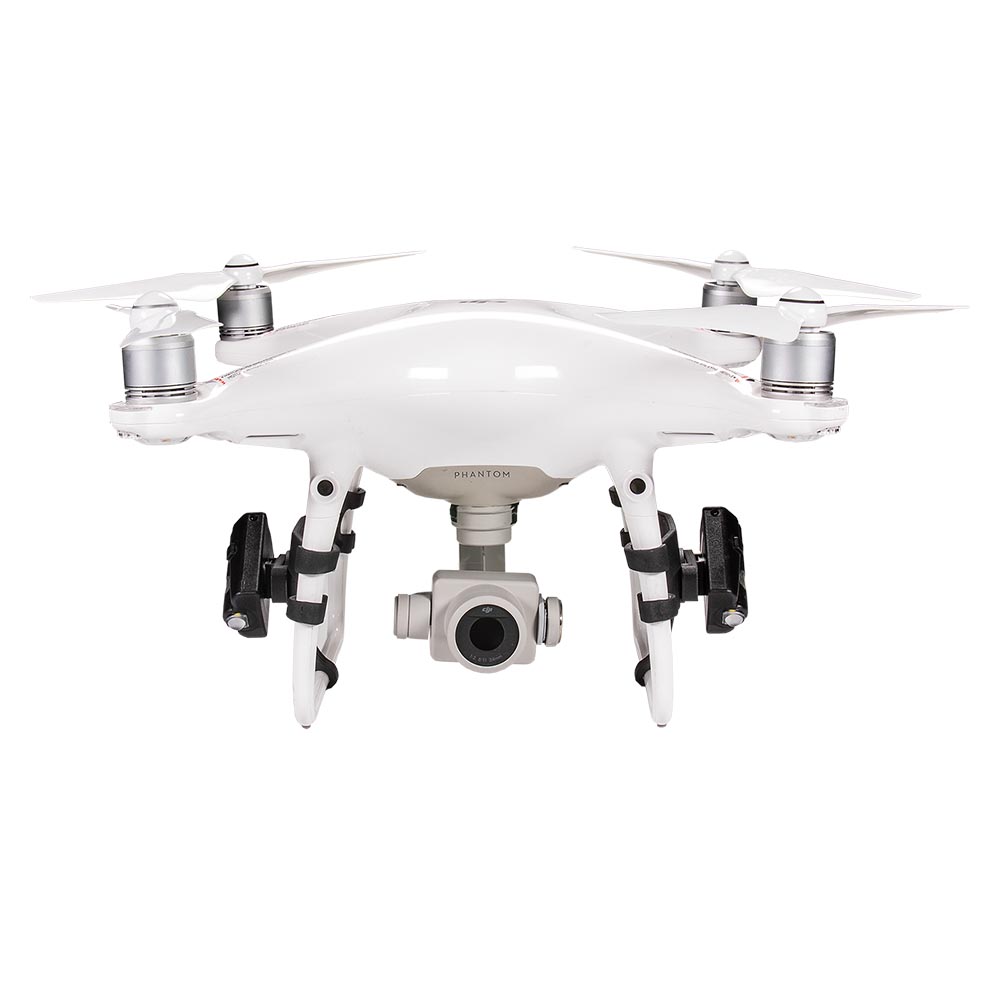

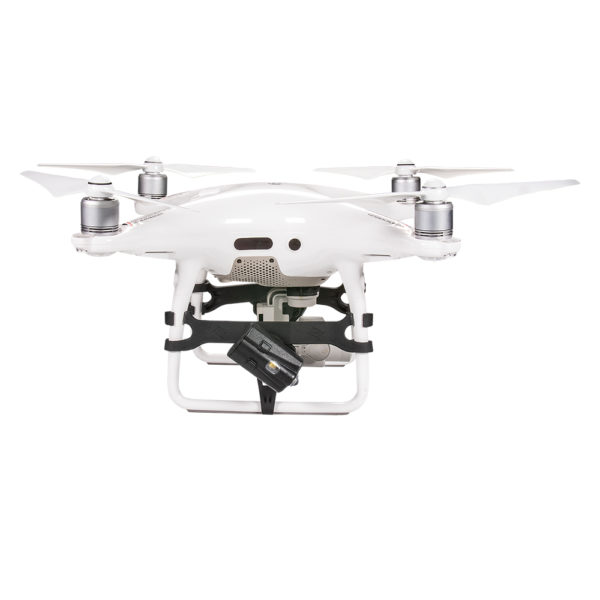

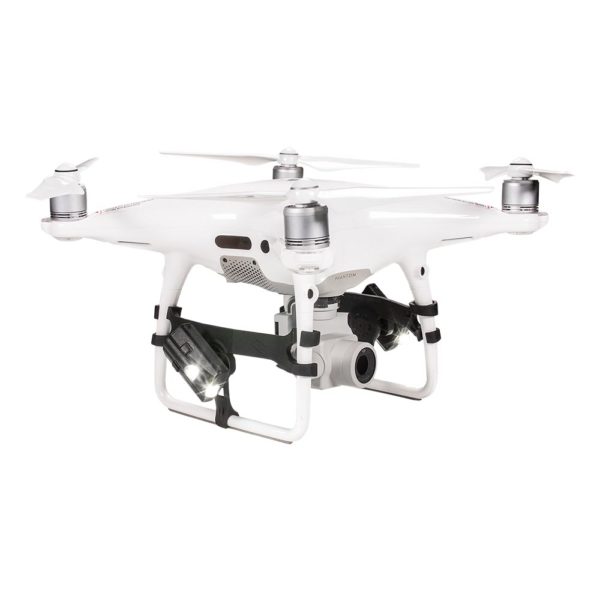

D3060-TC Light System for Phantom 4 Pro lets you mount two D3060 anti-collision lights on all models of the DJI Phantom 4. The mount locks into the legs of the Phantom 4 providing a secure fit that ensures that lights will not fall off the drone mid-flight. Each D3060 light has 2 independent strobe capable LEDs that give 360° of light for visibility. Weighing only 2.2oz for both lights, your flight time will be minimally affected.
D3060-TC
The FoxFury D3060-TC is a small format drone, helmet and utility light. This trade compliant light is fully assembled in U.S.A. It has strobe-capable 30° and 60° dual LEDs that operate independently to provide 360° anti-collision lighting. The waterproof D3060 is rechargeable via USB-C and offers best-in-class durability. It lasts 1.5 to 3 hours on a single charge, and only weighs 1.3 oz (37 g). Its various mounting options enable it to be used as a utility, anti-collision or navigation light.
Dual LEDs
The D3060 has two independent lights. They can be turned on independently or simultaneously. Both lights have low, high, and strobe modes. The strobe mode meets FAA and global regulations for UAV night flight and anti-collision drone lighting.
360° Swivel

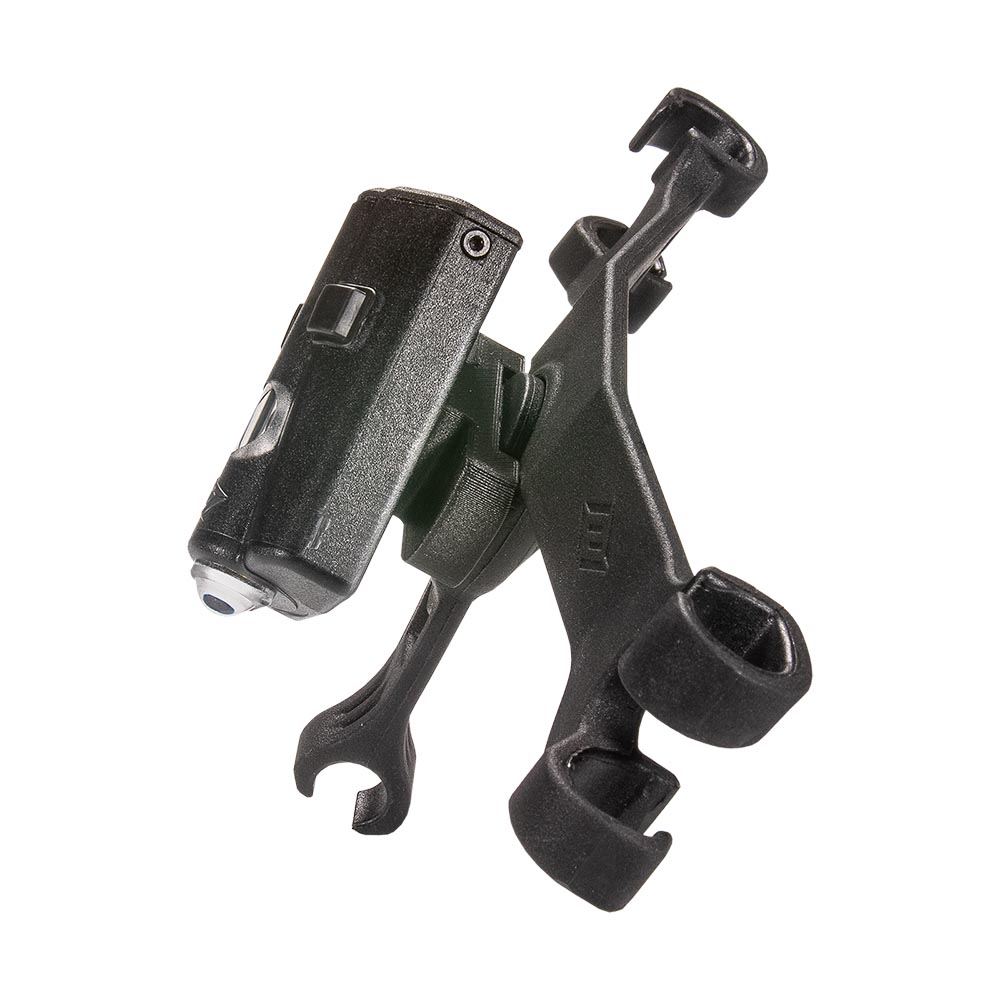

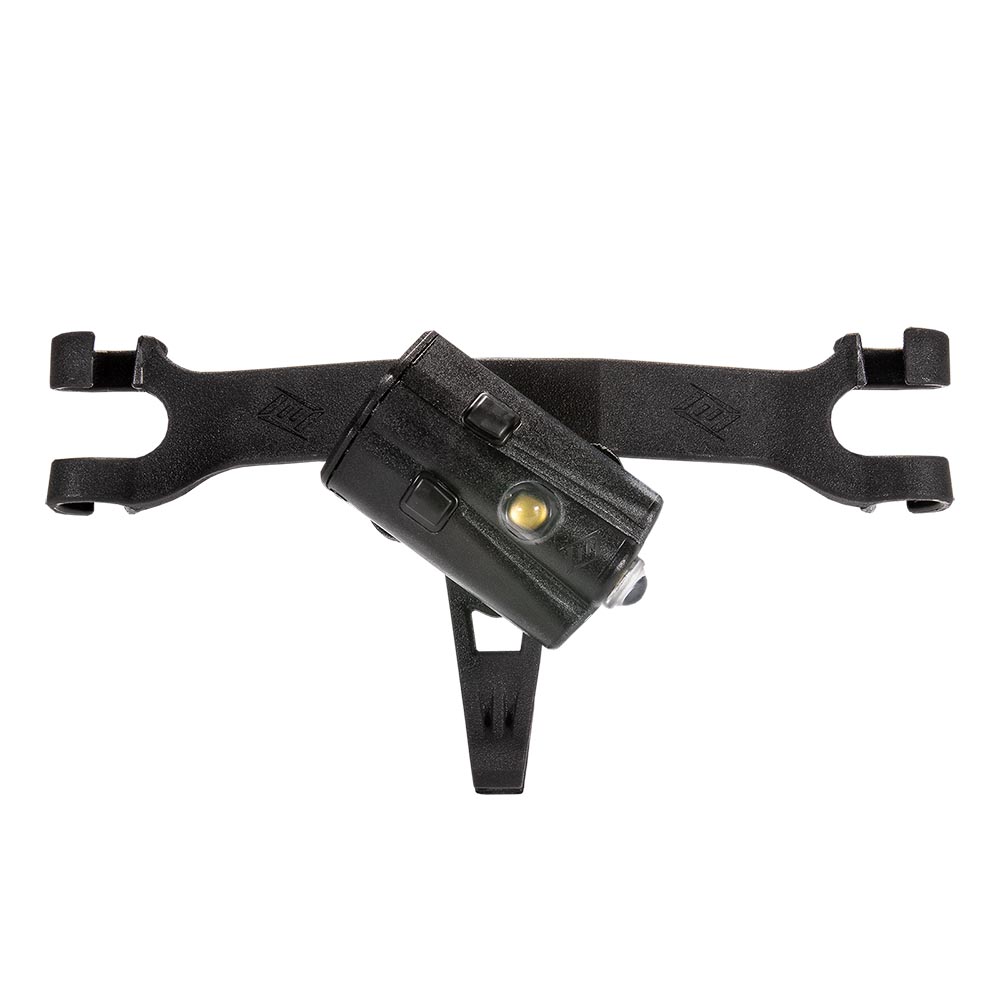

The D3060-TC swivels 360° on the Phantom mount allowing the user to rotate the light in any direction necessary.
The D3060-TC Light System for Phantom 4 Pro fits all past and current versions of the DJI Phantom 4
- Phantom 4
- Phantom 4 Pro
- Phantom 4 Pro V2
- Phantom 4 Pro Multispectral
- Phantom 4 Pro RTK
Specifications
D3060-TC Light
Beam Angles/DistanceFront Light (30°): 65 ft (20 m), Dorsal Light (60°): 40 ft (12 m)
| Lumens |
|
| Front Light (30°) |
200 lumens (High), 60 lumens (Low) |
| Dorsal Light( 60°) |
160 lumens (High), 50 lumens (Low) |
| Front Light: Strobe |
200 lumens (High) |
| Dorsal Light: Strobe |
160 lumens (High) |
| Battery Type 1 |
Rechargeable LiPo battery (3.7V, 560 mAh) |
| Battery Recharge Time |
1.5 hours |
| Adaptor Input |
USB-C |
| Battery Life |
|
| Front Light |
1 hour (High), 3 hours (Low) |
| Dorsal Light |
1.5 hours (High), 3 hours (Low) |
| Strobe light: Front or Dorsal |
4.0 hours (Front) | 5.0 hours (Dorsal) High |
| Both Low |
1.5 hours |
| Both Strobe |
4 hours (Each) |
| LED Color |
White |
| Color Temperature & CRI |
5000K, 90 CRI |
| Modes |
High, Low, Strobe
1.5Hz (30% duty cycle) or 90 cycles per minute
|
| Features |
Assembled in USA, 360° swivel light,2 lights at right angles of each other Mounts to Phantom 4 and Phantom 4 Pro Drones Strobe mode meets FAA and global regulations for UAV night flight and anti-collision lighting, Renders color more accurately & improves visibility |
| Dimensions, Light |
1.3 x 2.3 x 0.9 in (33 x 58 x 23 mm) |
| Weight, Light |
1.1 oz (31.2 g)/ ea |
| Warranty |
1 year Warranty with 300 cycles |
| Fire Resistant |
Meets NFPA Requirements |
| Certifications |
CE-EMC |
| Ingress Protection |
IPX6 |
 |
Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Click here to read more information about Prop 65.
WARNING
Avoid INJURY and DAMAGE. FoxFury Authorized attachments ONLY.
|
Phantom 4 Mount
| Dimensions, Rugo Drone Mount for DJI Phantom 4 |
Length: 6.97 in (177 mm)
Height: 3.36 in (85.3 mm) |
| Weight, Rugo Drone Mount for DJI Phantom 4 |
1 oz (28.4 g)/ each |
| Dimensions, Snap Mount for P4 |
1.8 x 0.63 x 0.44 in (46 x 16 x 11.2 mm) |
| Weight, Snap Mount for P4 |
0.08 oz (2.3 g)/ ea |
| Total Weight |
4.36 oz (123.8 g) |
| Warranty |
1 year Warranty |
| Fire Resistant |
Meets requirements of NFPA |
| Impact Resistant |
9.8 ft (3 m) drop |
| Certifications |
CE-EMC |
| Ingress Protection |
IPX6 |
| Materials |
Nylon |
| Materials, Snap Mount for P4 |
Nylon and Carbon Fiber |
| What is Included |
(2) D3060 Lights (2) USB-C Cable, 12" Long RugoTM Drone Mount for DJI Phantom 4, set of 2 (2) Thumbscrew, set of 2 Snap Mount for P4, set of 2 |
| Operating Temperature |
Min -4°F (-20°C), Max 300°F (149°C) |
|
Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Click here to read more information about Prop 65.
WARNING
Avoid INJURY and DAMAGE. FoxFury Authorized attachments ONLY.
|
